ATP Turbo Garrett G30-660 Bolt-On Turbo Kit w/ .83 A/R External Wastegate For 2013+ Ford Focus ST

ATP Turbo Garrett G30-660 Bolt-On Turbo Kit w/ .83 A/R External Wastegate For 2013+ Ford Focus ST

$ 2,995.00

Product Description:

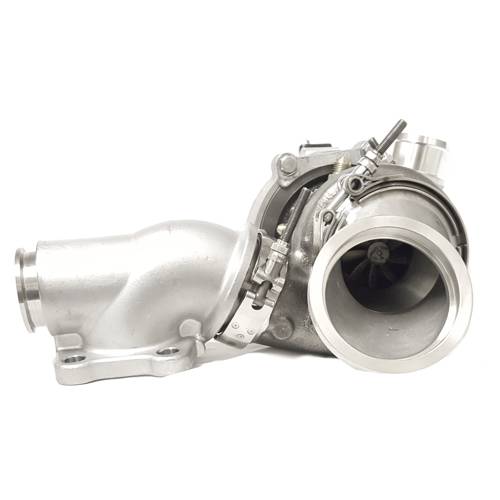

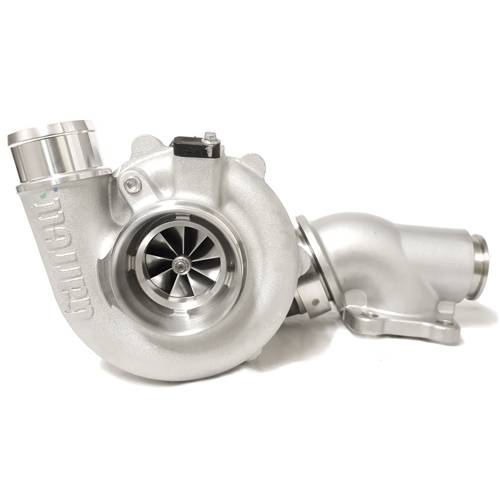

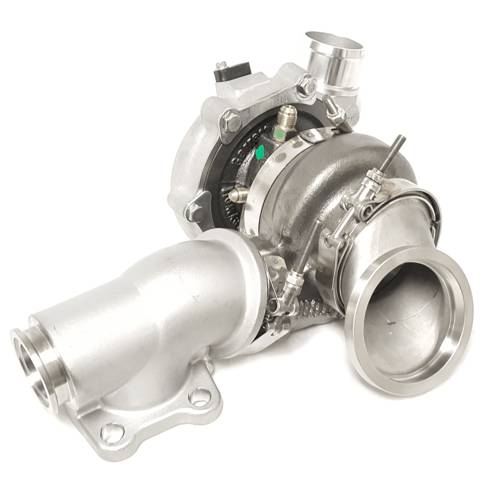

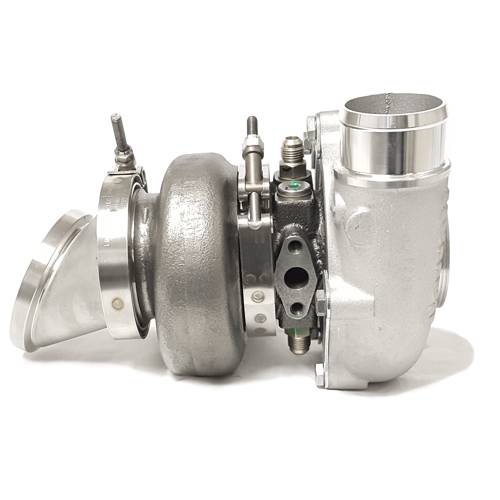

The Garrett G-Series G30-660 .83 A/R turbo kit for the Ford Focus ST 2.0L Ecoboost. Bolt on, stock location externally wastegated upgrade turbo solution. 660HP from a small frame package!

  • Ultra High Flow G-Series Compressor Wheel
  • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
  • Includes -4AN oil feed fitting and -6AN coolant/water fittings

Product Features:

  • Stock Location, Direct Bolt-on
  • Externally Wastegated
  • Built-in external wastegate port (Tial MVS) for future expansion.
  • V-band flanged turbo adapter (NOW Stainless Steel)
  • Any stock turbo flanged downpipe will fit
  • Any stock placement intake pipe will fit*.
  • Any stock placement charge pipe will fit*.
  • New steel braided oil feed and coolant lines provided
  • Fits stock oil drain tube
  • MVS wastegate and dumptube sold separately

Product Specifications:

  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.70
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

Product Applications:

  • 2013+Ford Focus ST
  • 2013+ Ford Fusion 2.0L Ecoboost
