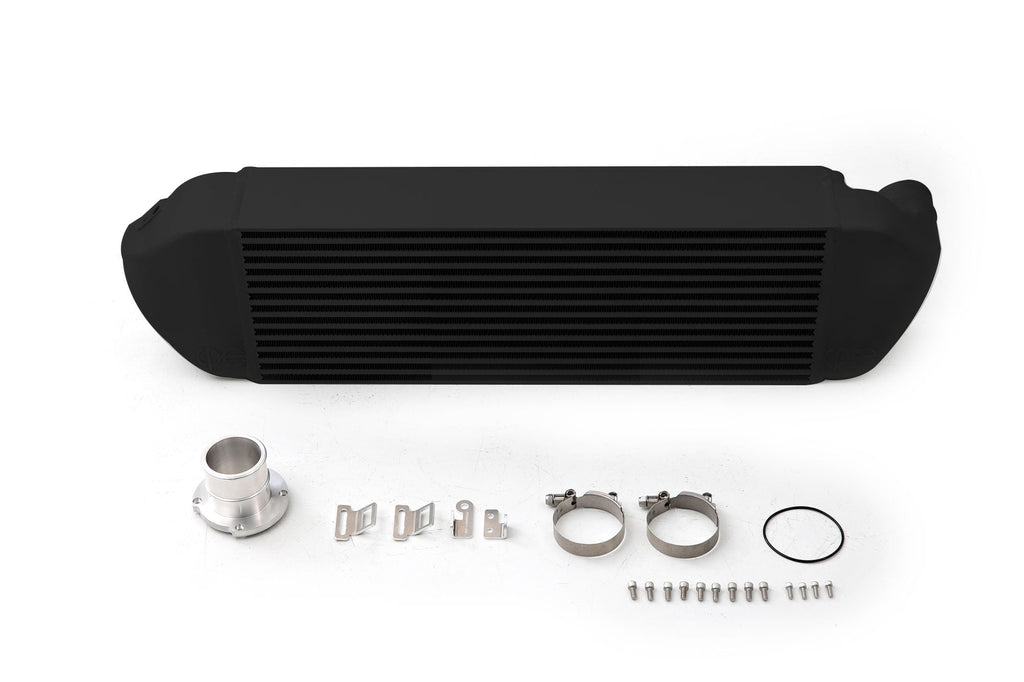

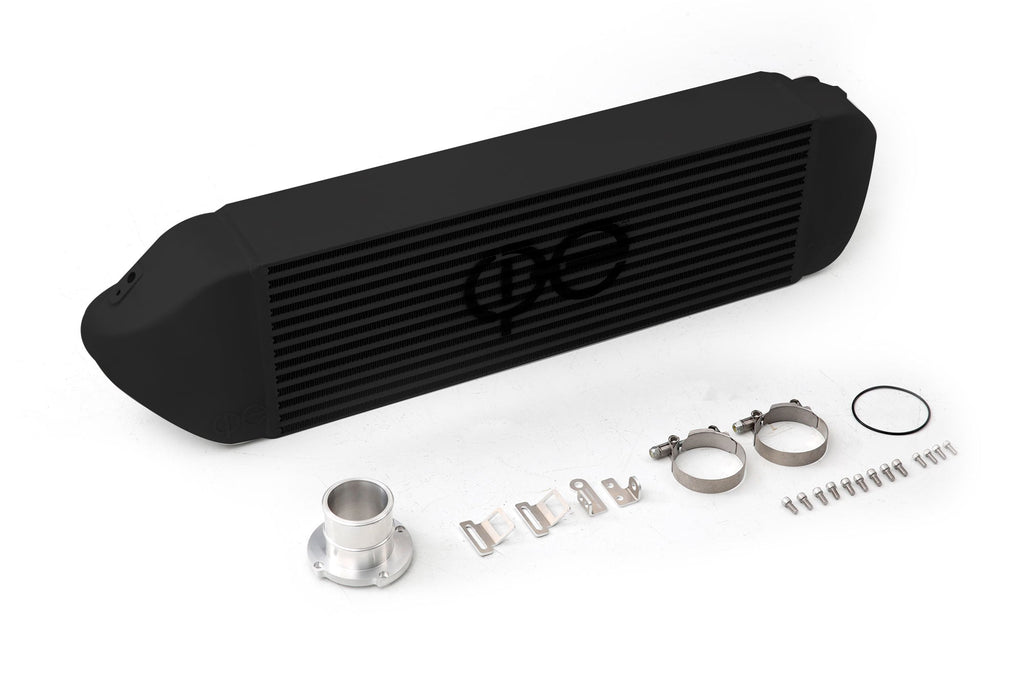

cp-e ΔCore Dissipate Black Front Mount Intercooler for 2016+ Ford Focus RS
[From the manufacturer...]
After months of engineering and development, cp-e™ is proud to release the ΔCore Ford Focus RS FMIC. The stock intercooler does an excellent job for the everyday driver that doesn’t want to modify their car. However, once you find that itch to go faster, the intercooler is a must have modification.
After months of engineering and development, cp-e™ is proud to release the ΔCore Ford Focus RS Black FMIC. The stock intercooler does an excellent job for the everyday driver that doesn’t want to modify their car. However, once you find that itch to go faster, the intercooler is a must have modification.
Focus RS Black FMIC Features
- 28 x 7 x 3.5″ Core Size
- Low Turbulence End Tank Design
- Minimal Pressure Drop
- Maximized Core Design
- Substantially Lower & More Consistent Charge Temps
- Bolt-in Design, No Vehicle Modification Needed
- Fully Cast End-Tanks
cp-e™ started off by determining the maximum size core that could fit without major modification to the vehicle. Our Ford Focus RS FMIC uses the bar and plate design to help ensure a high level of efficiency.
cp-e™ then set their sights on designing the perfect Ford Focus RS FMIC endtanks, developing a design that not only encloses the monstrous core, but also requires no cutting, no drilling, and no permanent modification to the vehicle. With the laser cut brackets, the intercooler will mount in the stock location while matching up to the stock intercooler piping. Customers can now upgrade their piping when their power demands need it and modify in smaller increments.
As always, the Focus RS Black FMIC includes cast endtanks that are welded and pressure tested with the core. What sets these endtanks from the rest is the engineering behind their shape and internal design. Hours of design and computer flow diagrams have been put into the tanks’ design to virtually eliminate turbulence within them. Many times, upgrading an intercooler causes increased turbo-lag, and an overall pressure loss. This is because of the large size of the core and the turbulence within the endtanks. By designing the endtanks to be smaller, and more efficient cp-e™ has found a way to minimize turbulence in order to keep the drivability of the car high, while still enlarging the intercooler drastically.
The internal design of the endtanks directs the air to bring the most optimal airflow as well as an even distribution throughout the core. In intercoolers, the back half of the core only does 25% of the cooling. The endtanks have been designed to direct the air properly into the core for the most even cooling, giving the vehicle the most consistent conditions going into the engine.
Focus RS Black FMIC Highlights
Turbulence Reduction Fins
When creating an intercooler, the goal is to maximize size, while not increasing pressure drop. Larger cores almost always exhibit some form of pressure drop, due to the massive turbulence in a large core. cp-e™ has engineered a way around this by adding our carefully calculated turbulence reduction fins to smooth out the airflow from the end tanks to the main core.
In the real world this translates to extraordinarily low pressure drop and no loss in spool times.

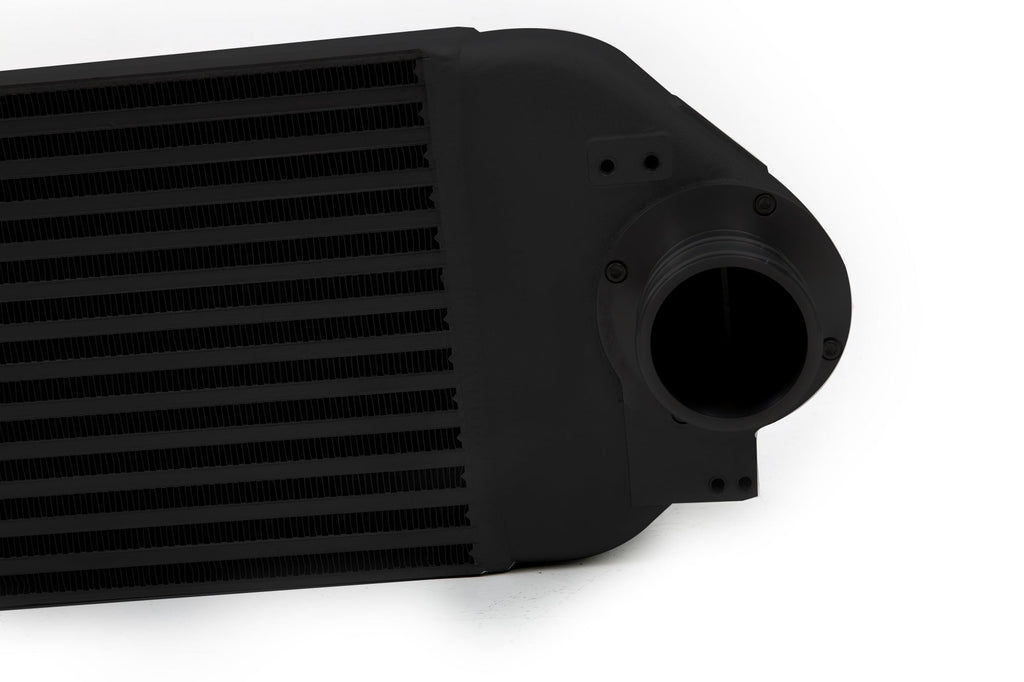

Upgradeable Endtank Outlet
When we designed the Focus RS ∆Core™ FMIC, we wanted this to be the last FMIC that you would need to buy for the platform. With this in mind, we made the outlet for the end tank on the cold side upgradeable. This means that whenever large power levels are hit, a bigger turbo is installed, or the most flow possible is needed, the entire core doesn’t have to be replaced in order to gain a full 2.75″ outlet from intercooler through our cold side charge pipe.
Keeping stock turbo customers in mind, we’ve supplied the FMIC with a 2.5″ outlet that will work better for the stock turbo. But once the itch for a bigger turbo hits, rest assured that the FMIC can be upgraded simply.
Fully Optimized Core Size
In order to build one of the most efficient intercooler designs possible, cp-e set out to make the largest core available. To accomplish this, we’ve maximized every single square inch of usable space behind the bumper. This is evident in the core design with recesses for a perfect fit. Yet this is the largest size physically possible without permanent modification to the vehicle.
***Not California emissions compliant | No implied CARB certification | Off-road use only***
