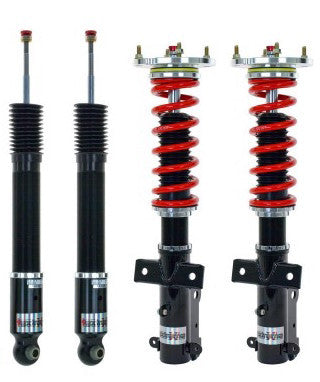

Pedders SportsRyder Extreme Xa Coilover Kit for 2015+ Mustang (GT/V6/Ecoboost)

Pedders SportsRyder Extreme Xa Coilover Kit for 2015+ Mustang (GT/V6/Ecoboost)

$ 1,196.96

Follow the link below to read our review of this AWESOME coilover kit that every 2015+ Mustang owner should have.

TUNE+ review of Pedders Extreme Xa Coilover Kit

FREE SHIPPING IN THE LOWER 48 STATES! International shipping is also available by emailing

  • Aluminum Monotube Shock
  • 30 position adjustment for rebound/compression (not separate)
  • Steel mounts
  • Aluminum spring perches
  • Aluminum top hat (Camber/Caster available in the future)
  • Shock absorbing upper rotational spring mount
  • Thrust washers on spring perches for smooth rotation
  • Includes a set of front endlinks
  • Adjustment wrenches for spring perches

Recommended height settings. This measurement is the threaded body distance between the lower spring perch and the upper spring perch that the spring rides on. These are based off the spring being all the way up, with 3-5 turns of preload on the spring (tighten spring purchase up from "hand tight" with the supplied wrenches). These settings will net you the same height as the vehicles in the pictures.

Front: 63mm
Rear: 20mm
Front: 90mm
Rear: 20mm
Front: 76mm
Rear: 20mm
